Benefit from our Innovative Omnidirectional Sensor for Autonomous Mobile Robots

EXPANDING THE BOUNDARIES OF IMAGING

Download the Fact Sheet
Vidyard Cover

Learn how our Omnidirectional Sensor works!

Explore

The First Omnidirectional Sensor based on Time-of-Flight Technology

The Jabil Omnidirectional Sensor reduces the number of independent sensors required for safe operation and complete situational awareness on robotics platforms. In contrast to conventional Time-of-Flight (ToF) cameras, the immersive (270° x 60°) field of view of the Omnidirectional Sensor enables seamless detection and tracking of objects in a robot’s path improving both obstacle avoidance and worker safety. Additionally, Jabil’s inventive use of scene information to dynamically control illumination significantly reduces sensor noise while improving data quality and power management.

The ground-breaking, solid-state design is one of several sensing systems Jabil Optics is designing to support lower-cost autonomous mobile robotics and collaborative robotics platforms.

"Analog Device’s mission is to enable the autonomous mobile robot revolution by providing high performance and highly differentiated signal chains that bridge the gap between the analog and digital worlds. The Jabil Omnidirectional Sensor is one of the most innovative implementations of the ADI depth sensing technology we have encountered. Jabil’s wide field of view depth sensing approach is opening up new possibilities for human interaction with robots."


Donnacha O’Riordan, Director of Analog Devices Inc.

Omnidirectional Sensor with 60° Field of View

Industry-Leading Field of View

By combining a custom optical assembly and an innovative active illumination approach, a ToF depth sensor with an industry-leading 270° x 60° field of view has been realized.

Benefits of our Sensor

The key benefit of our brand new sensor lays in the technology behind it. Thanks to the time-of-flight technology our sensor reacts much faster than other sensors. In combination with its horizontal and vertical field of view it leads to a higher security. Accidents and collisions will be avoided more often.

Our design goal is to provide customers with ground-breaking sensor performance in the smallest, lowest cost, lowest power solution possible. Factors such as data formats, on-sensor processing, and connectivity are moving targets in the quickly evolving robotics industry.

  • Increasing Safety

    Increasing Safety

    Continuous scene coverage improving safety and route planning

  • Reducing Costs

    Reducing Costs

    Reduction in number of sensors reducing both system cost and integration complexity

  • Enhanced Reliability

    Enhanced Reliability

    Increased sensor reliability through solid-state sensor design

  • Innovative Time-of-Flight Technology

    Innovative Time-of-Flight Technology

    World-class product roadmap based on innovations in time-of-flight sensing

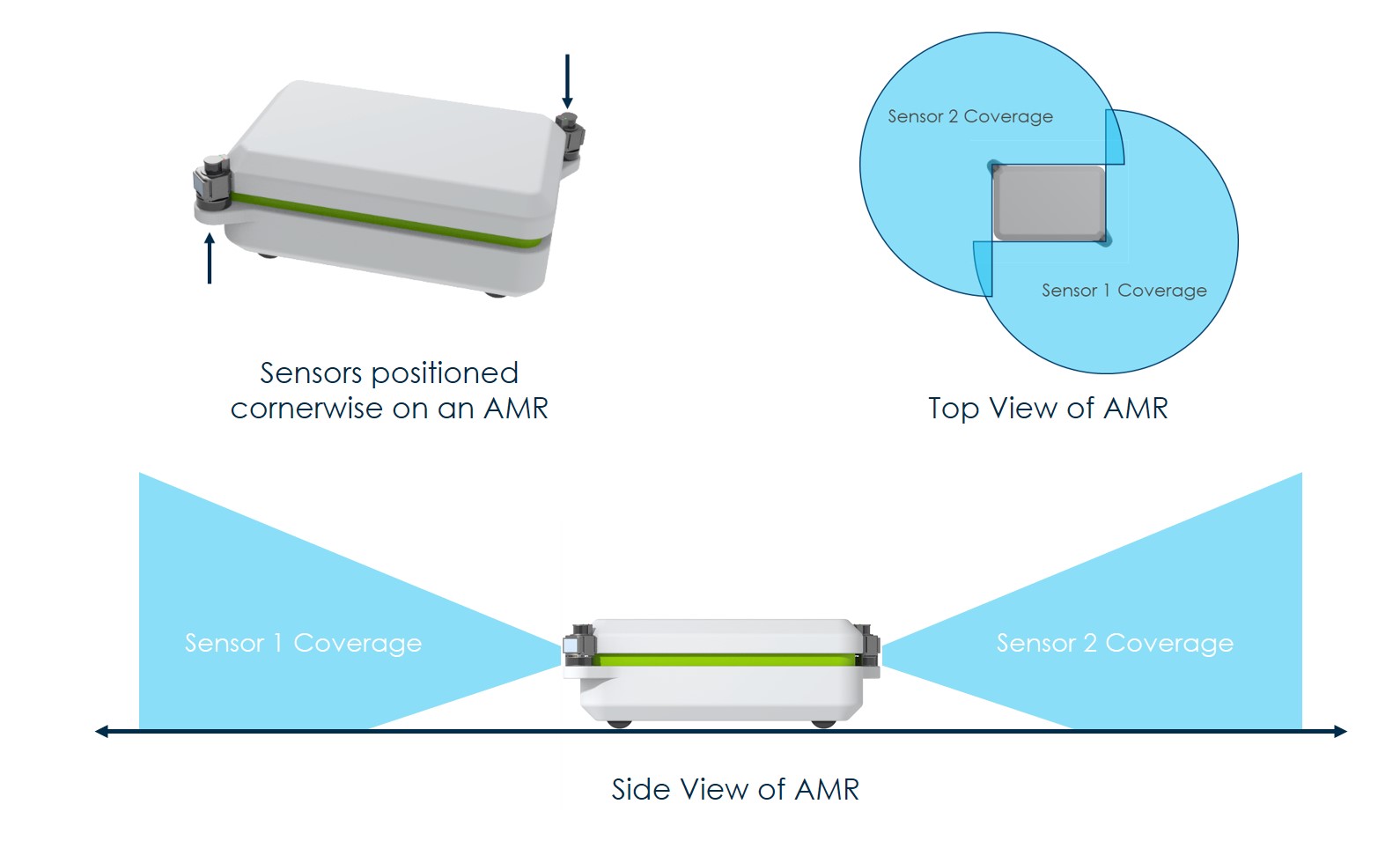

Omnidirectional Sensor positioned on autonomous mobile robot

Two Omnidirectional Sensors positioned on an Autonomous Mobile Robot

Request Your Evaluation Kit

We are in the process of optimizing the Omnidirectional Sensor to address the needs of the rapidly changing robotics industry. If you are interested in being selected as a ‘beta-tester’ or learning more, please contact us via the Request Form.


Request Form

Request Your Evaluation Kit!

Contact us if you are interested in being selected to be a beta-tester.


Request Your Kit

Sensor Specifications

HFOV 270°
VFOV 60°
Frame Rate 30fps
Resolution 640x480 px
Wavelength 850nm / (940nm)
Detection Range up to 5m
Height ~125mm
Width ~95mm



Related Resources

Please download below our fact sheet and company information.

Vidyard Cover

Omnidirectional Sensor Point Cloud
