Our Automation Systems
Jabil Precision Automation

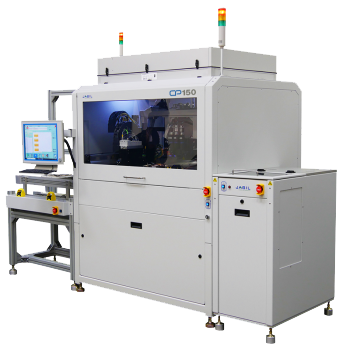

CP150 Series Automation System
Flexible, High-Precision Automation Systems
The CP150 automation platform delivers future-proof flexibility to any production line by delivering a highly-modular, scalable system that addresses a variety of automation needs.
Enhanced Capabilities
Metrology
We design and deliver non-contact metrology solutions that increase production throughput and repeatability.
-
Ability to identify cosmetic defects, coating thickness, gaps, and offsets
-
High-speed multi-angle light triggering
-
Custom AI Defect generation software
Optical Inspection
Our inspection capabilities allow you to identify and measure micron-level defects and surface flaws to ensure your products maintain the highest standards of quality.
- Cosmetic Defects
- Coating Defects
- Surface Finishes
- Gaps and Offsets
- Color and Gloss
Lamination
The ability to align, place, and cure our lamination capabilities delivers a streamlined process in your manufacturing processes.
- Alignment repeatability within 10 microns
- Scaleable for a variety of rigid and flexible material combinations
- Non-contact “Bernoulli End-Effector” loading and unloading of materials
- Automatic Planarity Adjustment
High-Speed Final Assembly
When it comes to high-speed, high-precision assembly we deliver robust capabilities designed to help you achieve your manufacturing goals.
- Label Placement
- Point-to-Point Soldering
- Precision Dispensing
- High-Speed Pick and Place
- Vision-Based Alignment
- Robotic Screw Fastening
Key Benefits
High Flexibility
The CP Series allows for a variety of configurations that can support any number of interrelated processes, production speeds, and quality levels. Configure pallet or edge-belt conveyors with either a reversible left-to-right or right-to-left conveyor flow to optimize your manufacturing processes.
Multiple Levels of Automation
The platform supports a wide range of processes, ranging from semi-automatic to fully automated modes, to help support your manufacturing objectives.
Redeployable
Future proof your investment by re-deploying the CP Series work cell for various applications. Common interfaces enable rapid change-over of applications; saving you time and money.
Key Features
- Platforms can be configured in any orientation ensuring optimal support of interrelated processes, production speeds, and quality levels
- Modular Z-axis and Theta axis (optional) available
- Multiple Vision location options (up-camera or down-camera)
- Standardized mounting flanges and control interfaces
- Quick-change feeder mounting available
- OSHA and ANSI compliant
|
CP150 Specifications |
|
|---|---|
|
Machine Footprint |
|
|
Work Envelope |
|
|
Axes of Motion |
|
|
Z Max. Stroke |
|
|
Theta |
|
|
Manipulator Payload |
|
|
Manipulator Repeatability |
|
|
Utility Requirements |
|
|
Product Presentation |
|
|
Feeder Slots Available |
|
|
Electrical I/O |
|
|
Pneumatic |
|
|
MES Connectivity |
|
|
Controls |
|

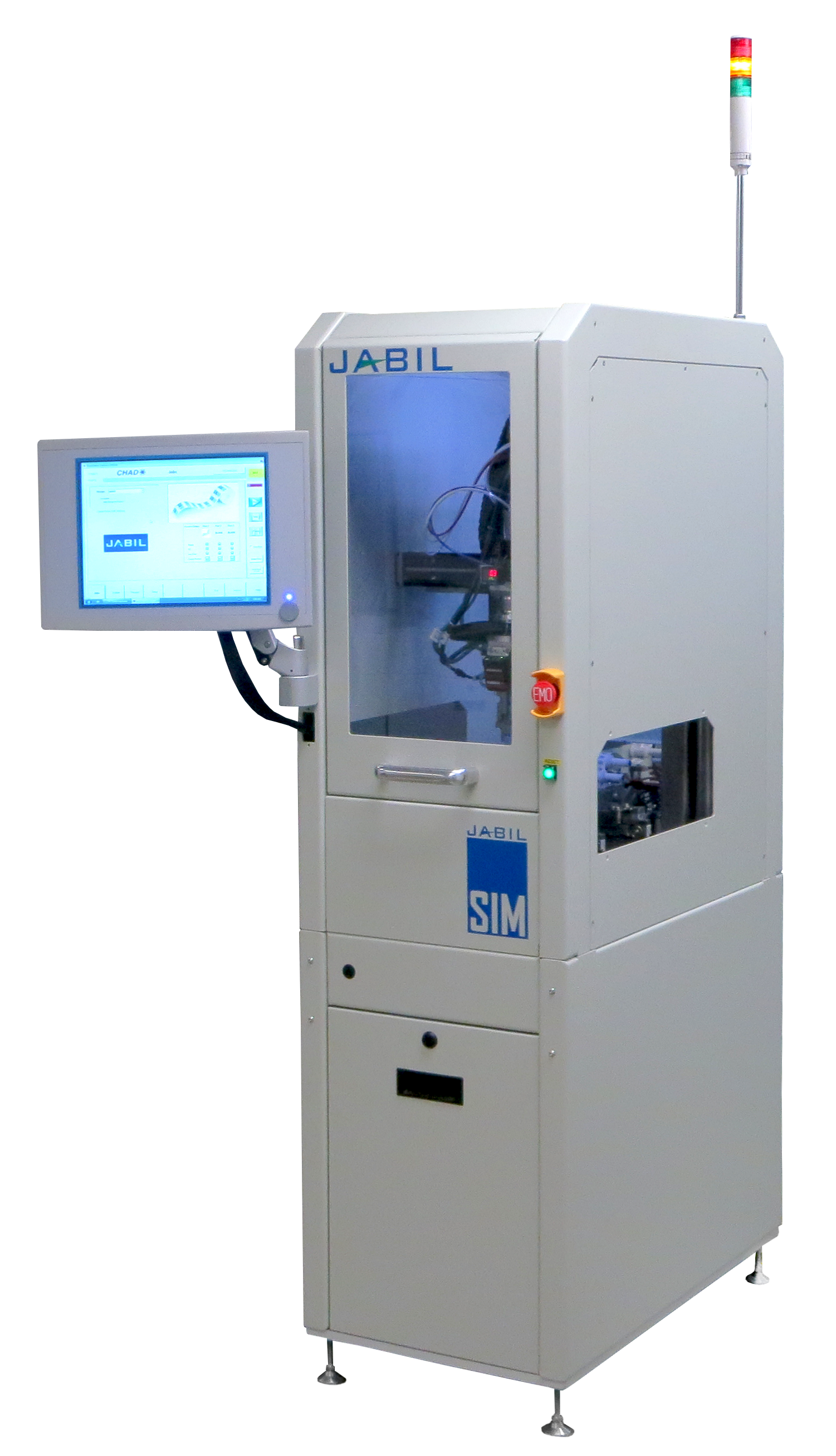

SIM500 Series Automation System
A Flexible, Cost-Effective Automation System
Jabil’s Standard Integration Module (SIM) platform utilizes interchangeable modules to automate basic to complex production applications. Pre-engineered solutions minimize risks, simplify integration, and reduce lead-time. SIM platforms can be used inline or as stand-alone workstations.
Key Capabilities
-
Pick and Place
-
P2P Soldering
-
Screw Fastening
-
Label Placement
-
Vision-Based Alignment
-
Precision Dispensing
Key Features
-
The SIM is a re-deployable system featuring common interfaces that enable rapid change-over of applications
-
The platform supports a range of processes from semi-manual to fully automated
-
The platform can be fitted with a pallet conveyor or edge belt conveyor, with reversible left-to-right or right-to-left conveyor flow
-
Platforms can be configured in any orientation ensuring optimal support of interrelated processes, production speeds, and quality
-
Modular Z-axis and optional Theta axis
-
Vision location options (up-camera or down-camera)
-
Standardized mounting flanges and control interfaces
-
Quick-change feeder mounting
-
Full safety guarding (OSHA and ANSI compliant)
Equipment Options
- XYZ Cartesian
- Edge Belt or Pallet Conveyor
- Pneumatic Shuttle (future)
- Board Support (tall stroke)
-
Theta Axis on Manipulator
-
Vision Up-Camera or Down Camera
-
Barcode Reader
|
SIM500 Specifications
|
|
|---|---|
|
Machine Footprint
|
|
|
Work Envelope
|
|
|
Axes of Motion
|
|
|
Z Max. Stroke
|
|
|
Theta
|
|
|
Manipulator Payload
|
|
|
Manipulator Repeatability
|
|
|
Utility Requirements
|
|
|
Product Presentation
|
|
|
Feeder Slots Available
|
|
|
Electrical I/O
|
|
|
Pneumatic
|
|
|
MES Connectivity
|
|
|
Controls
|
|

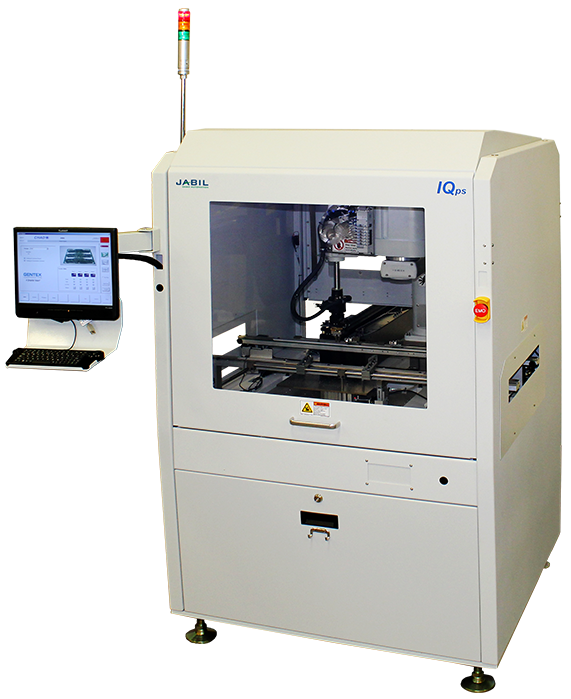

IQPS Series Automation System
A Flexible, Cost-Effective Odd-Form Automation System
The IQps™ is a low-cost automation platform that offers an ideal solution for Odd Form Pick-and-Place and other circuit assembly applications. Easy-to-use motion and vision controls provide excellent capabilities. Standard assembly tools provide great system flexibility. Fully configurable, the IQps™ is an excellent choice for standard and custom odd form applications.
Key Features
-
Active or programmable lead clinch
-
Ability to handle virtually all component types
-
Quick-change feeder slots
-
Edge belt conveyor with board stop and board locating tooling
-
EPSON 4-axis SCARA Robot with motion controller
-
Simple, intuitive IQware™ application software
- EPSON 4-axis SCARA Robot with motion controller
- Simple-to-use IQware™ application software and intuitive operator interface, via Windows PC and manual control pendant
- Edge belt conveyor with board stop and board locating tooling, as well as board support
- Active or Programmable Lead clinch (optional)
- Quick-change feeder slots accept all standard part feeders. Options for 4, 6, or 10 feeders
- Compatible with standard CHAD Grippers, including standard mechanical and vacuum grippers, plus the CHAD PIE™ compliant gripper
- Ability to handle virtually all component types, including axials, radials, pin headers, capacitors, connectors, transformers, relays, TO-220’s, displays, LED’s and more
- Custom specifications can be accommodated
- Full safety guarding (OSHA and ANSI compliant)
System Options
- Active Clinch Heads
- Programmable Single Pin Clinch
- 3-Section Conveyor
- Auto-Width Conveyor
- Vision Board Location or Part Location
- Bar Code Reader
- Product Traceability Options
Grippers
- SGE Single Grip End Effector (mechanical or vacuum)
- MGE Multi-Grip End Effector
- PIE 3D Compliant “Floating” Gripper
Feeders
- RC Radial Tape Feeder
- AF Axial Tape Feeder
- TM Tube Magazine Feeder
- Bowl & Inline Feeder
- Tray Feeder

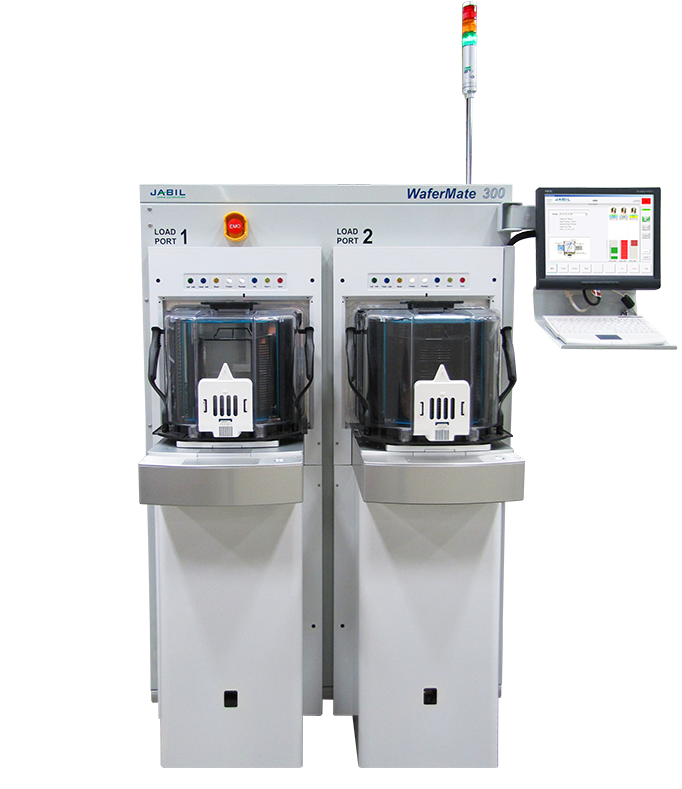

WaferMate 300 Series Wafer Handling System
High-Performance Wafer Handling Automation Systems
The WaferMate300 is a highly configurable, BOLTS-compatible robotic wafer-handling platform that mates high performance with cost competitiveness. As an ISO Class-2 clean EFEM, this platform includes all applicable mini-environment components, E84 compliance, and rear hand-off.
Key Features
-
Supports a wide range of wafer process tools & environments
-
Available in single and dual load port configurations
-
Can service up to 3 process tools at once
-
Adaptable for 200mm and smaller substrates
- Offering a range of end effector technologies - including vacuum, Bernoulli non contact, edge grip, and more
- Full safety guarding (OSHA and ANSI compliant)
- Cleanliness levels down to ISO Class-2
- CE, SEMI S2, and SEMI S8 Compliant
Available Accessories
- FOUP Opener
- SMIF Pod Opener
- Aligner
- Optical Character Recognition (OCR) Systems
- Barcode Readers
- Radio Frequency Identification (RFID)
- Ionization Bars
- Mini Environment
- Wafer Flip Module
- Pallet Transfer Station
- Wafer Conveyor / Oven Interface
- SMEMA & SECS/GEM Interfaces
| WM300 Specifications | |
|---|---|
| Machine Footprint |
|
| Wafer Alignment |
|
| Wafer Placement |
|
| Clean Room Classification |
|
| Wafer Interface Options |
|
| Cassette Positions Available |
|
| Loadport Positions Available |
|
| MTBF |
|
| Compliance Standards |
|
| Uptime |
|
| Handling Capabilities |
|

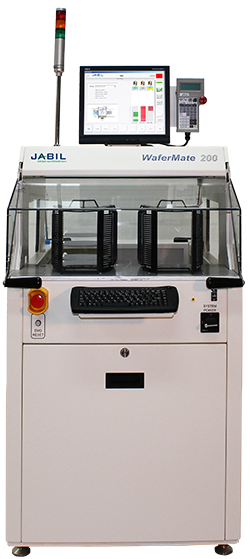

WaferMate 200 Series Wafer Handling System
High-Performance Wafer Handling Automation Systems
The WaferMate200 is a high-performance wafer-handling platform, engineered for the expert automation of semiconductor wafers and similar substrates. The standard SMEMA interface provides the most cost-effective wafer-level process solution for systems that traditionally fit a conveyor layout.
Key Features
- Pairs seamlessly with multiple types of process tools
- Configurable for two, three, or four cassette positions
- Suitable for all open cassette presentation formats
- Suitable for 50mm to 200mm wafers or 300mm from shipping cassette
- Can accommodate film frames, special thin and warped wafer components
- Full safety guarding (OSHA and ANSI compliant)
- Cleanliness levels down to ISO Class-4
- CE, SEMI S2, and SEMI S8 Compliant
Available Accessories
- Aligner
- Optical Character Recognition (OCR) Systems
- Barcode Readers
- Ionization Bars
- Mini Environment
- Wafer Flip Module
- Pallet Transfer Station
- Wafer Conveyor / Oven Interface
- SMEMA & SECS/GEM Interfaces
| WM200 Specifications | |
|---|---|
| Machine Footprint |
|
| Wafer Alignment |
|
| Wafer Placement |
|
| Clean Room Classification |
|
| Wafer Interface Options |
|
| Cassette Positions Available |
|
| MTBF |
|
| Compliance Standards |
|
| Uptime |
|
| Handling Capabilities |
|
